Proton Therapy Systems

High AccuracyHigh Cure RateFast TreatmentFewer Side-effects

Effective for malignant tumours of the brain, spinal cord tumours, cerebrovascular diseases, head and neck tumours, eye lesions, thoracic and abdominal tumours, paediatric tumours and other diseases.

Parameters

Treatment Room	Fixed-beam Treatment Room/ Gantry Room
Dose Rate	≥2 Gy/(L.min)
Beam Intensity	>800 nA
Particle	Proton
Treatment Head	Pencil Beam Scanning
Continuously Adjustable Energy Range	70-220 MeV
Maximum Energy	240 MeV
Radiation Field	30 cm×40 cm

Introduction

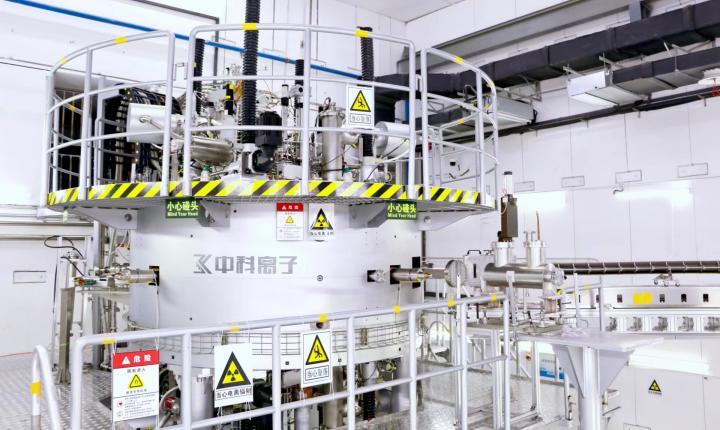

Superconducting Cyclotron

Superconducting technology.
Continuous high-dose intensity modulated.
High efficiency.

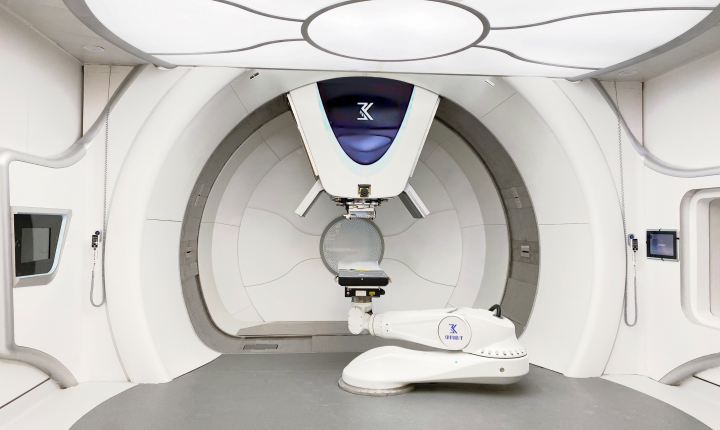

360° Gantry Room

Lightweight.
Full 360° treatment angle.

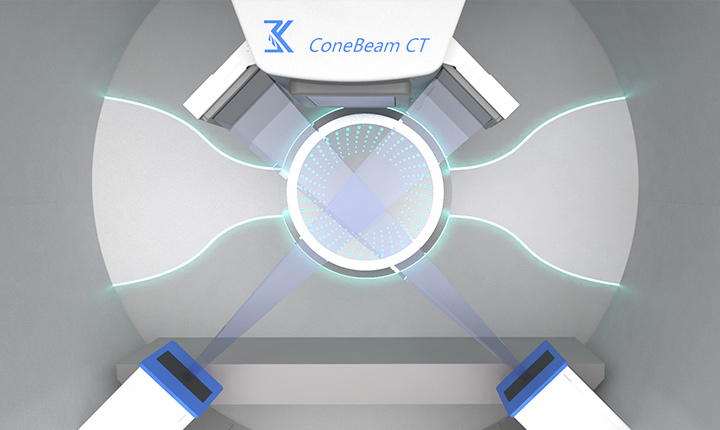

Cone-beam CT image Guidance System

Performing a 360° scan around the patient to acquire the precise position of tumor area, minimizing radiation exposure to normal tissues.

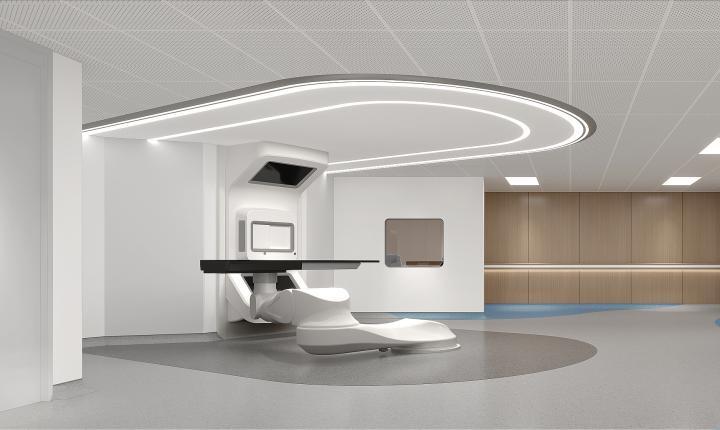

Fixed-beam Treatment Room

Large fixed irradiation field, cost-effective.
Primarily used for the treatment of head and neck tumors, particularly suitable for lesions such as skull base chordomas and malignan.

Advantages

Flexible Configuration

Personalized solutions are available, with single- or multi-room proton therapy systems tailored to clinical and research needs.
High Efficiency

Scientific system operation process, fully optimised working logic, the average treatment time of 15 minutes per session; Flash technology allows brief but high dose tumor radiation, effectively reducing treatment duration.
Compact Structure

Superconducting technology enables small size, light weight, low energy consumption, thereby reducing floor space and construction costs.
Customized Interface

Customized development to clinical needs, lightweight interface library, bilingual (English and Chinese) user interface for ease of operation.
Patient-centered Care

The gantry room reflects the concept of "Reinvent Yourself as a Butterfly", effectively relieving patients' psychological discomfort during the treatment process and ensuring the therapeutic effect.
High Accuracy

Advanced pencil beam scanning technology ensures continuous and stable beam current, rapid intensity modulation; fully rotating gantry and precise image guidance system enable flexible irradiation

Options

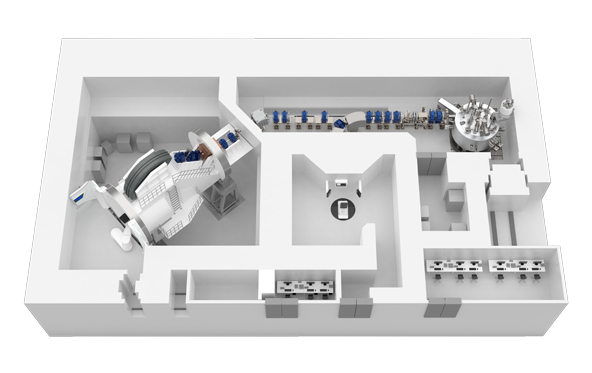

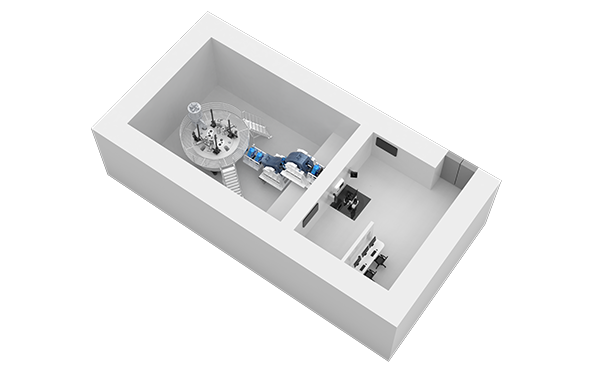

CAPRO-S（1 room）

The footprint of the single-room proton therapy system is approximately 400 m2

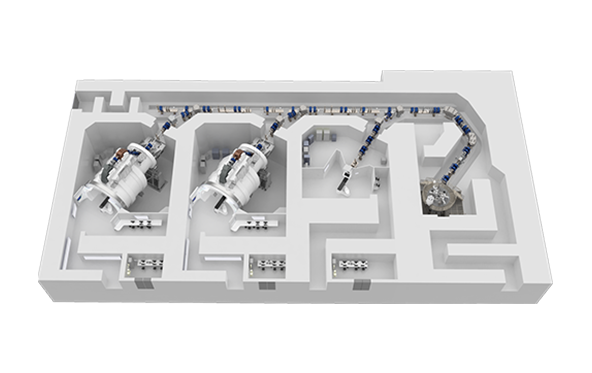

CAPRO-C (2 rooms)

The footprint of the 2-rooms proton therapy system is approximately 600 m2.

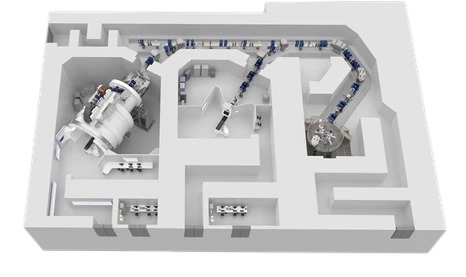

CAPRO-C (1 gantry room, 1 fixed treatment room)
CAPRO-X (multi-rooms)

Multi-room system can be configured with treatment rooms according to demand, causing higher cost and larger footprint.

CAPRO-X(2 gantry rooms, 1 fixed treatment room)

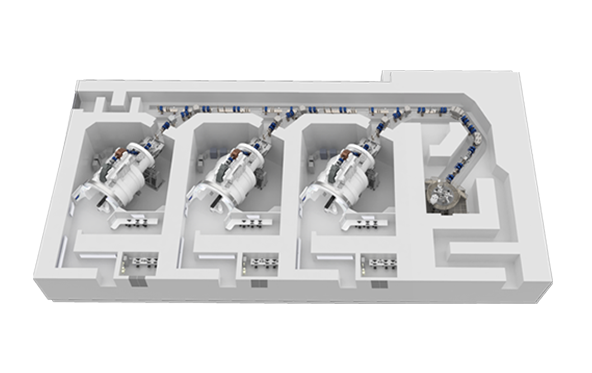

CAPRO-X(3 gantry rooms)
